Nitron Performance Shocks
Every Nitron shock is built using the ultimate in quality precision components, each of which has undergone an extensive and rigorous design and development program to ensure optimum performance. Nitron shocks are designed using a modular system which allows maximum flexibility throughout the development of each application. Each individual component is machined to exacting standards and individually inspected by trained technicians as part of a strict quality control process.
UNIQUE TECHNOLOGY
Through extensive testing of all new materials, finishes and processes and by combining technologies unique to Nitron, every shock is built to outperform and outlast its competitors, be it on the road or the track. Only by maintaining these high standards can Nitron ensure that customers experience the very ultimate suspension available.
For cars, Nitron offers three suspension implementations, in both EDC / PASM systems, and full mechanical systems:
– R3
– R1, and
– RoadSport
Nitron NTR elecTRON Suspension System
The evolution of the Nitron range is here. By combining the world renowned Nitron quality and attention to detail with the latest electronic valve technology – the elec-TRON range is born.
The use of Nitron’s proportional solenoid valve in each shock gives a high level of precision and control in the damping system. Each shock absorber in the Nitron elec-TRON system is equipped with its own valve, allowing for independent damping control of each wheel, crucial for optimized handling, stability and ride comfort. The system can precisely adjust the damping force based on various factors such as g-load conditions, vehicle speed, road conditions and driver input resulting in super accurate and responsive damping, enhancing the overall performance of the vehicle.
The Nitron elec-TRON system offers flexibility in its application by providing two main options:
Standalone Electronic Damping System: Users have the option to install the Nitron elec-TRON suspension kit as a standalone electronic damping system. This means that if your vehicle does not come equipped with an OEM (Original Equipment Manufacturer) electronic damping system like BMW’s EDC or Porsche’s PASM, you can now benefit from the advanced damping control offered by the Nitron’s elec-TRON system. The Nitron DCU (Damper Control Unit) unit is included as part of this system and features a selectable damping control via an adjustment knob.
Integration with OEM Electronic Systems: For vehicles already equipped with OEM electronic damping systems such as BMW’s EDC or Porsche’s PASM, the Nitron elec-TRON suspension kit is designed to work in conjunction with these. This integration allows users to retain full functionality of the OEM controls, while also benefiting from the added capabilities and precision offered by the Nitron elec-TRON system. In this case, the Nitron system complements and enhances the performance of the existing OEM system.
With the choice of either using the vehicle’s original damper control unit, or using Nitron’s DCU, the following suspension kit packages are available:

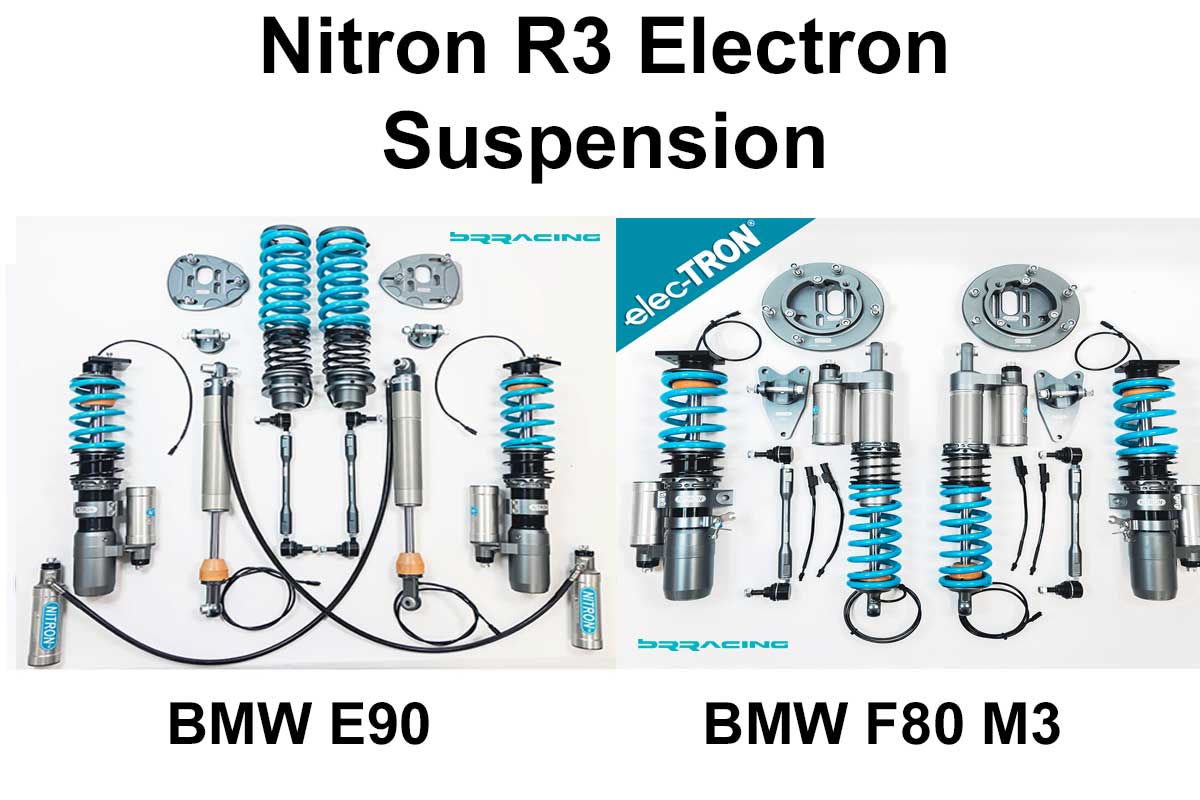

elec-TRON-R3 Coilover Kit
The elec-TRON-R3 coilover kit combines the Nitron proportional solenoid valve with independent manual compression control. Designed for enthusiasts or professionals looking to further optimize their vehicle’s suspension performance for more extreme driving conditions and a higher level of performance. Piggyback or remotely mounted reservoirs allow quick and simple independent adjustment of high-speed and low-speed compression damping.

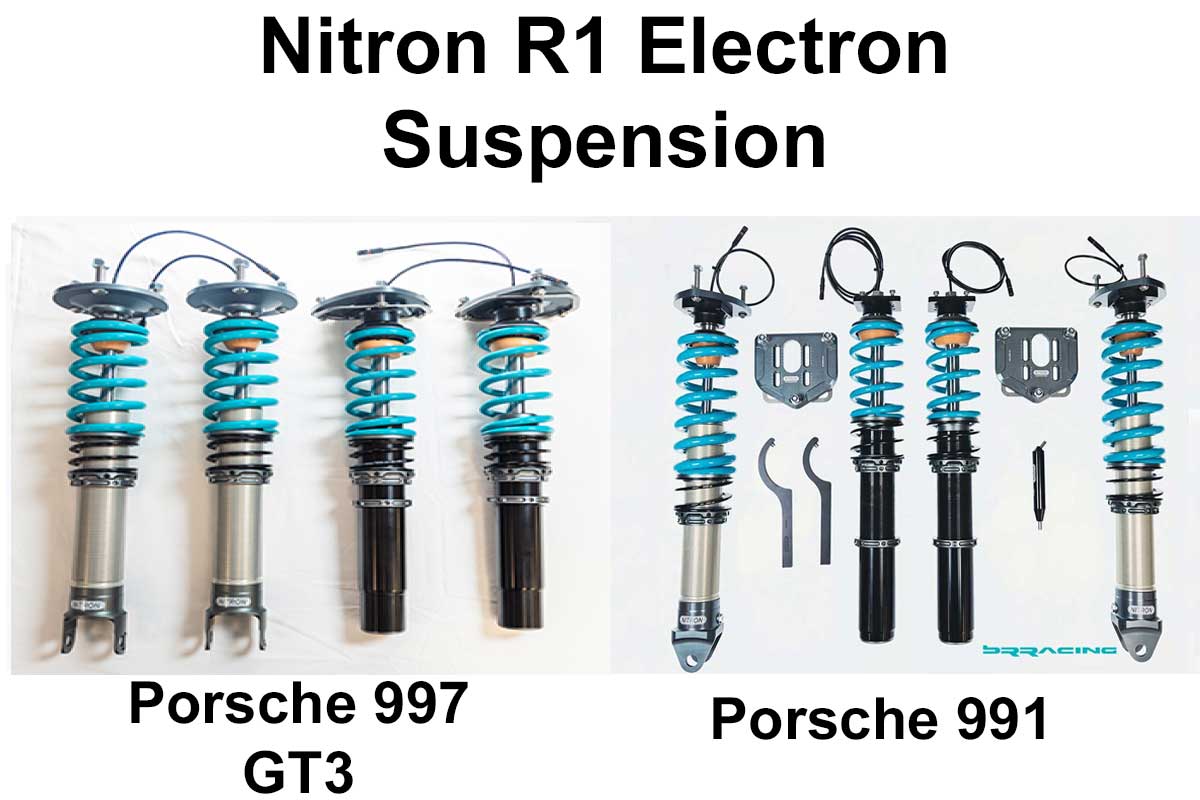

elec-TRON-R1 Coilover Kit
The elec-TRON-R1 coilover kit utilizes the Nitron proportional solenoid valve with all of the damping control being carried out by the control system. This kit includes our adjustable top mounts and uses our race springs, which in turn gives you the ultimate adjustment for a perfect geometry setup.
elec-TRON-RoadSport Coilover Kit
The elec-TRON-RoadSport coilover kit offers many of the same benefits of our elec-TRON-R1 kit but is more road orientated and is developed with a formed spring that works with the OEM top mount.
BI-AXIS HOSE FITTINGS
NTR Hose shocks by Nitron feature specialized Bi-Axis fittings designed exclusively for easy and precise installation.
Nitron Mechanical Suspension Systems

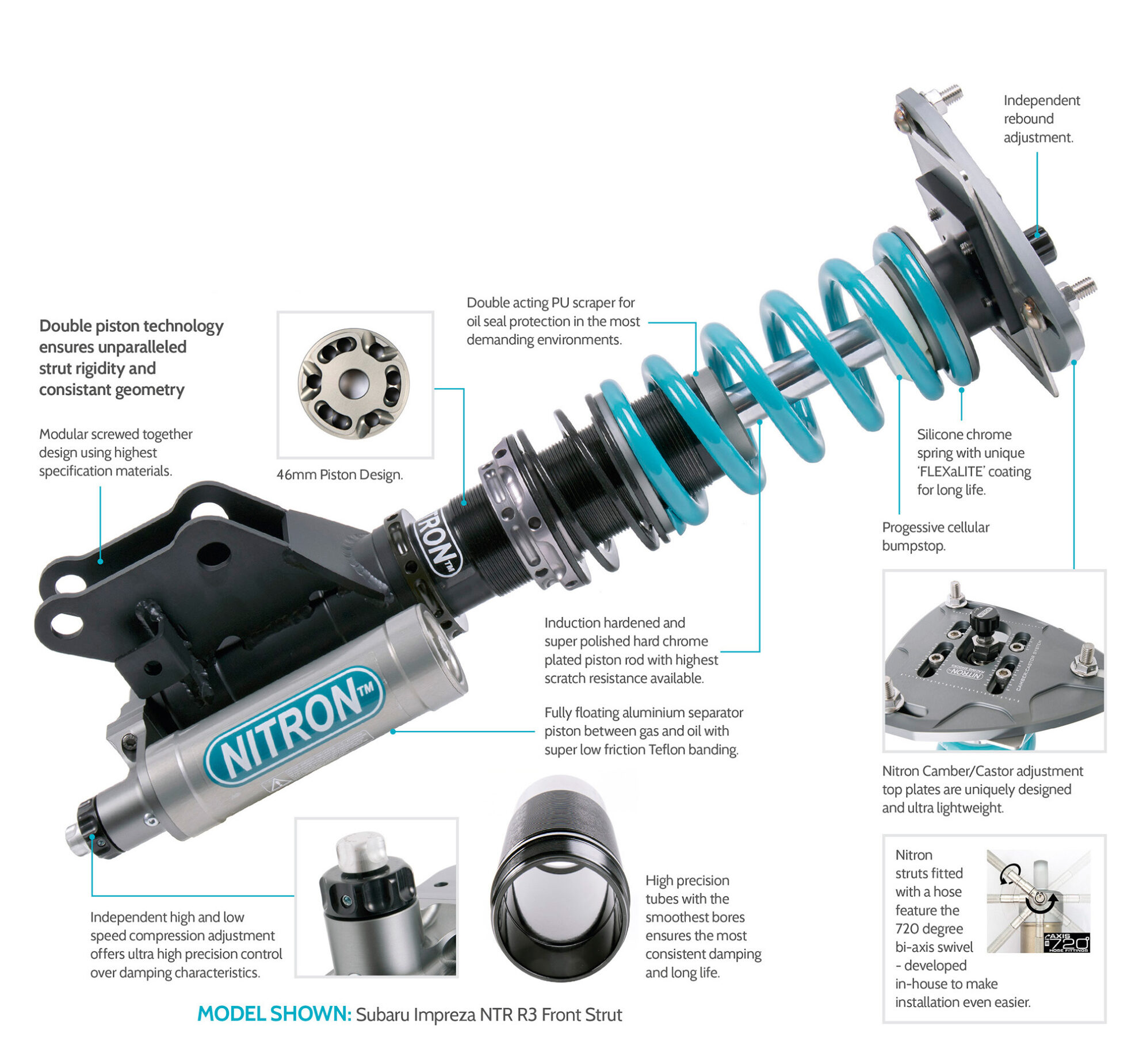

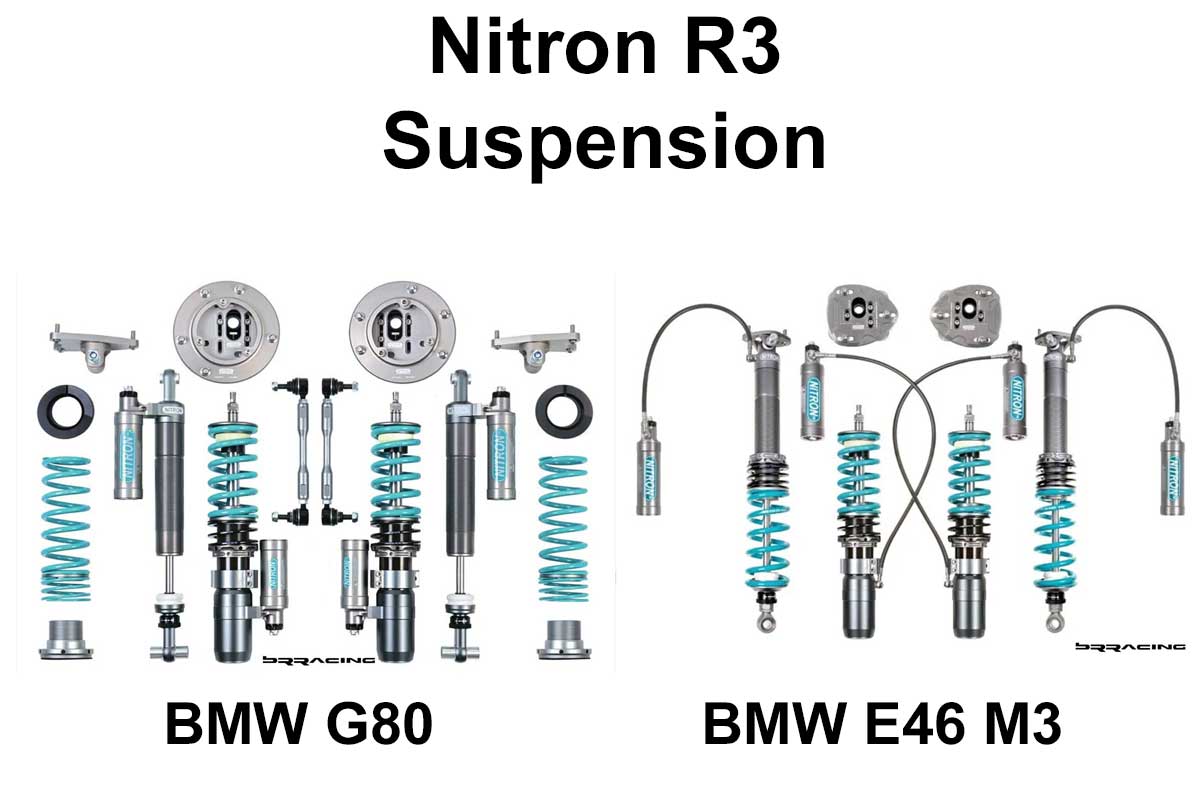

NTR R3 SYSTEMS
The NTR R3 system sets the standard for ultimate performance with its 3-Way independent damping adjustment and ride height adjustment capabilities. Engineered with a large diameter 46mm piston and ultra-strong piston rod, the R3 system delivers exceptional damping control and adjustment flexibility. It features piggyback or remotely mounted reservoirs for independent adjustment of rebound, fast compression, and slow compression damping, allowing experienced drivers to fully exploit their vehicle’s potential on both road and track.
The high-grade materials and finishes protect against corrosion whilst reducing weight. Every R3 kit is custom built, sprung and fully serviceable.
Key Features:
* 3-Way Independent Damping Adjustment
* Ride Height Adjustment
* Large diameter 46mm piston and ultra-strong piston rod
* Piggyback or remotely mounted reservoirs for independent damping adjustments
* Wide range of adjustment from fast road to full track settings
* High precision CNC machined, independent caster and camber adjustable front top mounting plates with spherical bearings
* High-grade materials for corrosion resistance and reduced weight
* Custom-built, sprung, and fully serviceable
* Bi-Axis hose fittings for simple and precise installation
The NTR R3 system is a proven race winner and lap record holder across various international motorsport categories. Each kit is hand-built to order, ensuring durability and performance season after season, even under the harshest conditions.

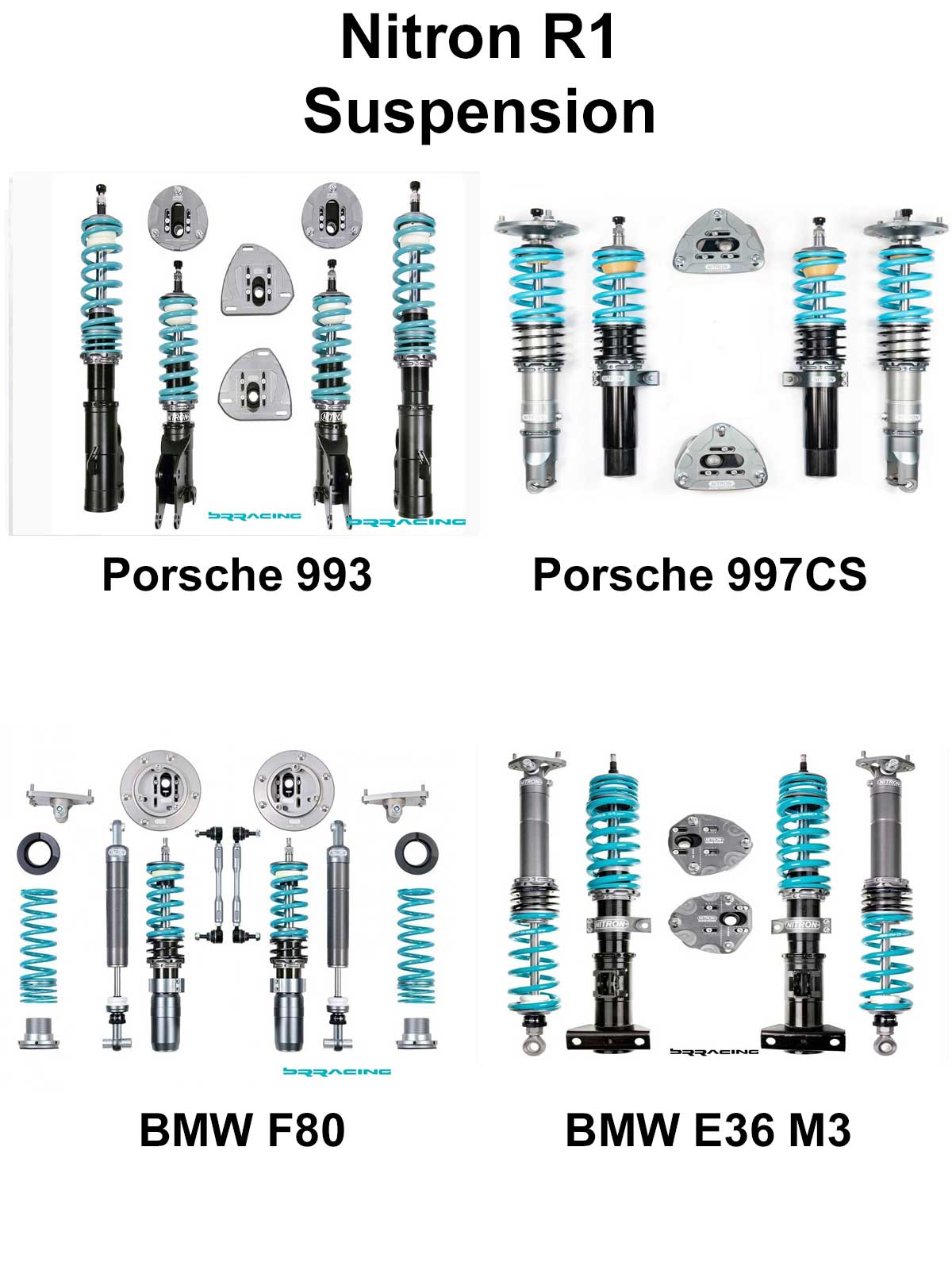

NTR R1 SYSTEM
The NTR R1 system represents a pinnacle of performance and value, offering drivers precise damping control with a straightforward design.
This kit fits the BMW 1-Series, 2-Series, and 3-Series F20, F21, F22, and F30 generations.
It features a different size rear spacer, top pin, and a smaller sleeve on the front (57mm) compared to the M-variant of the kit.
Key Features:
* 2-Way Damping Adjustment: Derived from our race-proven suspension technology and sharing components with the R3 system, the NTR R1 delivers exceptional performance and reliability suitable for both road and track applications.
* Performance and Value: Widely acclaimed for surpassing more expensive suspension kits, the NTR R1 provides uncompromising quality and durability without requiring a remote canister.
* Built for Durability: Handcrafted with ultra-low friction components, the NTR R1 is fade-resistant and designed to endure rigorous road and track conditions.
* High-Grade Materials: Corrosion-resistant materials minimize weight without compromising strength. Each NTR R1 kit is custom-built, sprung, and fully serviceable.
* Longevity: Titanium and hard-anodized parts ensure durability season after season, even in the harshest environments.

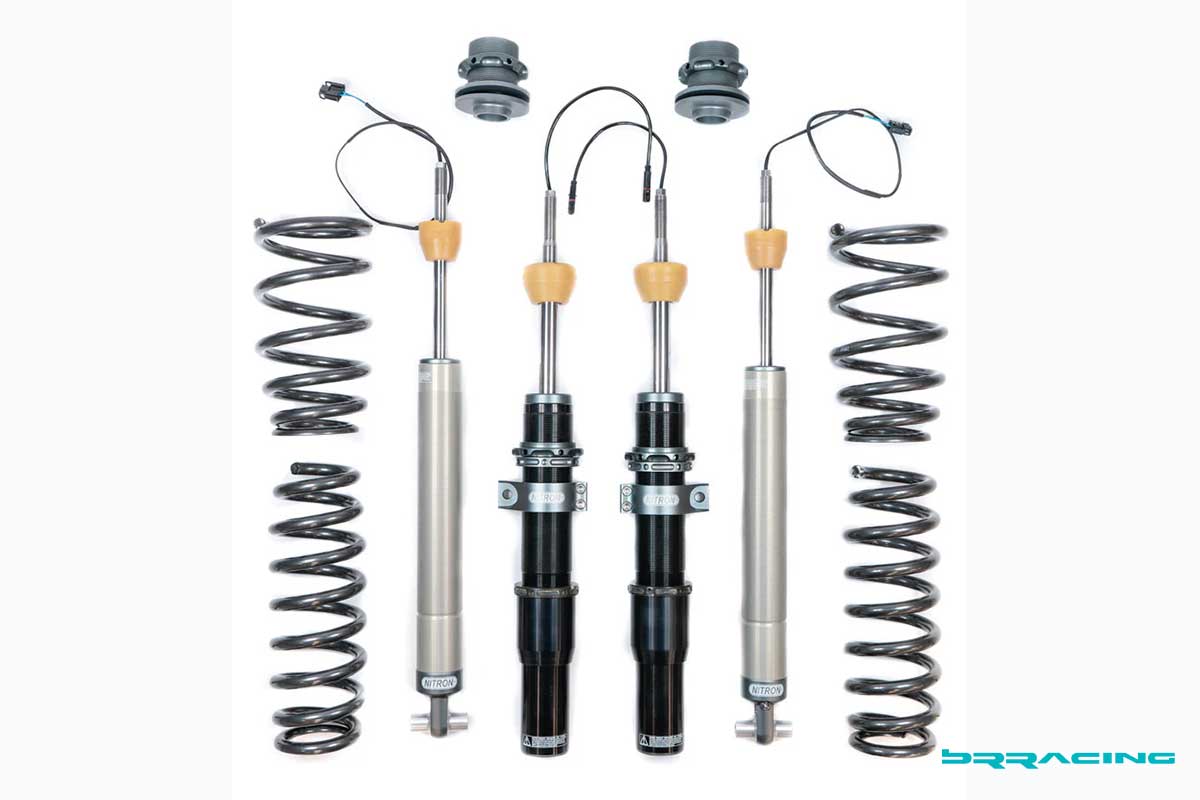

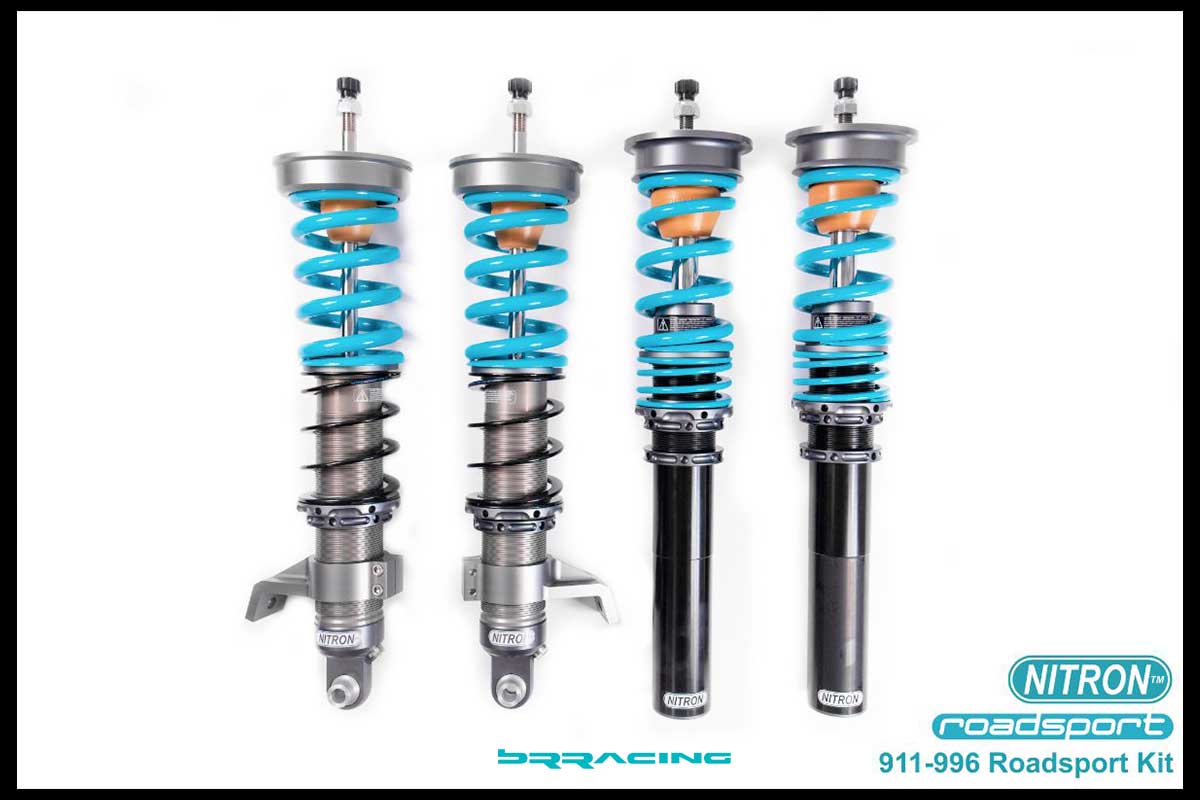

NTR RoadSport System
The Nitron NTR RoadSport system offers exceptional performance and value, designed to provide drivers with versatile and effective damping control.
Developed from our full race suspension and sharing many components with the Nitron R1 coilover kit and Nitron R3 coilover kit, the Nitron RoadSport kit utilises the OE top mount and will always follow the OE rear suspension type, serving a balance between ultimate performance and ultimate comfort.
Features:
* Combined 2-way damping adjustment.
* Developed for fast road driving with occasional track use.
* Retains OEM top mounts for original comfort and noise levels.
* High-quality custom-rate springs enhance body control and ride quality.
* Utilizes original top mounts to minimize noise and vibration.
Quality and Construction:
* Uncompromising quality, reliability, and performance without a remote canister.
* Fade-resistant and hand-built with ultra-low friction components.
* Made from ultra high-grade materials for corrosion resistance and weight reduction.
* Custom-built, sprung, and fully serviceable for longevity.
* Titanium and hard-anodised parts ensure durability in all conditions.
STANDALONE ELECTRONIC DAMPING SYSTEM

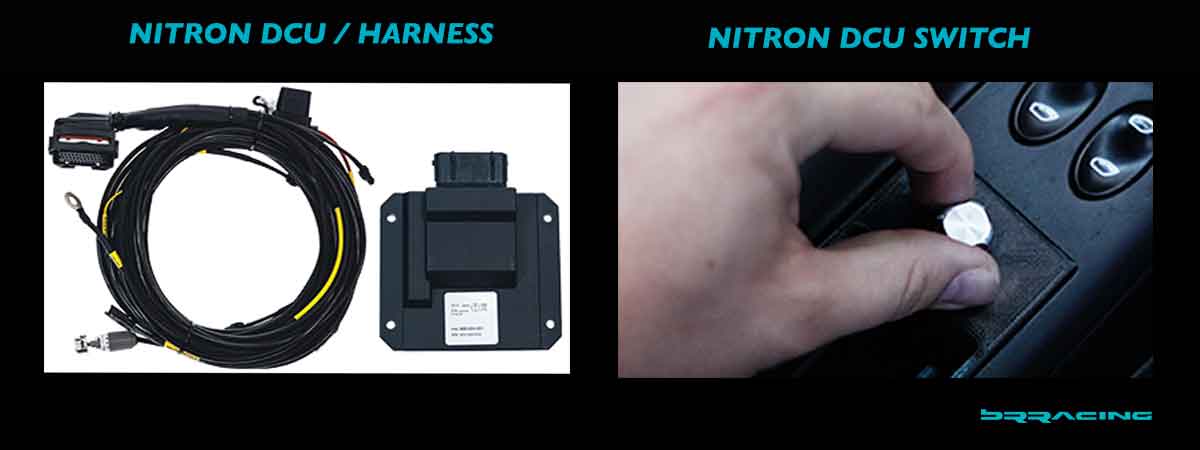

elec-TRON DCU (Damper Control Unit)
The Nitron DCU allows you to transform your shock set up from passive damping to a semi active system. Nitron’s elec-TRON valve is continually adjusting the damping levels every 5 milliseconds, depending on the information it receives from the DCU. The DCU decides what position the valve should be in (and therefore what damping levels are created) by assessing all the data it receives about the car, its attitude and the forces acting on it (braking, cornering and accelerating).
By fitting a DCU in conjunction with elec-TRON shock absorbers, your vehicle not only benefits from having extremely high performance Nitron dampers, but these dampers are constantly adjusting themselves to provide you with optimised levels of grip and comfort. The DCU is fitted with an adjustable control knob, which allows the user to access a number of pre-installed damping maps such as Rain, Tour, Sport, and Race for their specific vehicle. Damping will continue to be constantly optimised, but the overall damping levels will be determined by the user’s selection.
Specifications
* Supplied with a custom or universal wiring harness
* Utilises Arm Cortex-M4 processor
* Independent control of 4 electronic dampers
* 6 position rotary control switch or visual rotary display and control allows user to access a number of pre-installed damping maps (x3 Passive and x3 Adaptive)
* 2x 3 axis accelerometers
* 1x 3 axis gyroscope
* 200 Hz damping control rate
* Configured for application location and settings
* Ideal for restomod applications
* Fully resin bonded
NITRON PASM / EDC INTEGRATION
The Nitron elecTRON systems also work in a “plug and play” implementation with your cars stock PASM or EDC systems. No need to change, alter, add to anything, just install the Nitron electTRON suspension system, and plug into your existing suspension wiring harness. The stock features of your car are retained (shock valving changes with your chosen car “mode” (like comfort, sport, sport +). You can also replace your standard PASM or EDC control module w a DSC control module, and now have independent software control of your suspension system.
Lots of options.
Talk to us today about what NITRON suspension system is right for your application and your car.
